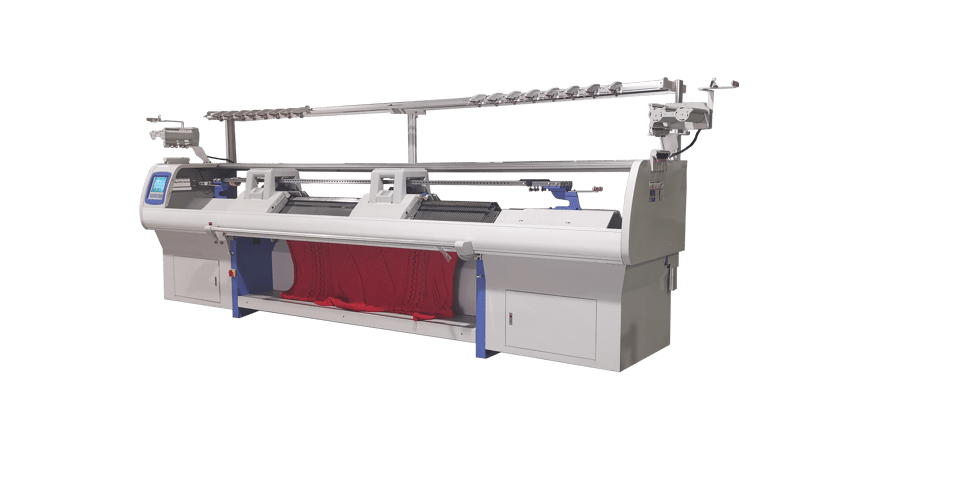

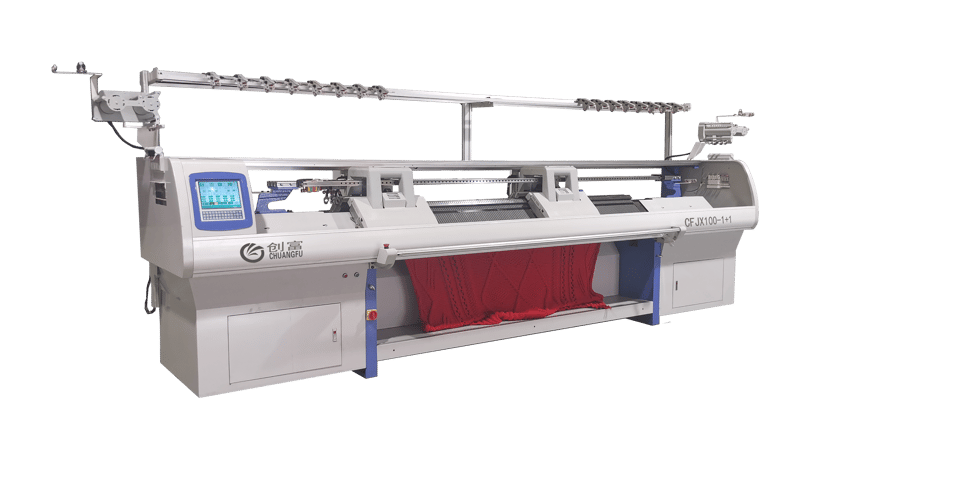

Home Textiles Knitting Machine
Explore detailed specifications, features and application information for this product.
Home Textiles Knitting Machine
Gauge : 1.5G 2.5G 3G 5/7 G 12G 14G
Breadth：80" 100" 120"
| Needle Type | 1.5G 2.5G 3G 5/7G 12G 14G |
| Weaving Amplitude | 80" 100" 120" |
| Knitting System | 2+2 3+3 Three System |
| Knitting Function | Needle, pick holes, jacquard, cable, ming narrowing, dark narrowing, variable density and other regular patterns woven |
| Control System | Screen display: LED touch screen, USB input, memory up to 8G, according to the production of call |
| Monitoring menu: displays current knitting parameters, and can be adjusted at any time when the machine is operating | |
| Plate making and control system (software): easy to upgrade, for free distribution. | |
| Multi language version: according to customer needs to increase the required language. | |
| Speed:1.5m/s | |
| Protection System | When the machine has any fault in the course of action, will automatically alarm, at the same time display alarm project |
| Power Supply | Single phase 220V, CMOS technology, has the memory function at power-off moment |
| Knitting Width | Length | Width | Height | Net Weight | Power Consumption |
|---|---|---|---|---|---|
| 80" | 3800mm | 950mm | 2000mm | 1450kg | 1100W |
| 100" | 4500mm | 950mm | 2000mm | 1650kg | 1100W |
| 120" | 5050mm | 950mm | 2000mm | 1950kg | 1100W |
The Home Textiles Knitting Machine is presented with an unusually broad group of gauges: 1.5G, 2.5G, 3G, 5/7G, 12G and 14G. Listed breadths are 80, 100 and 120 inches. These alternatives make it especially important to match the machine to a defined home-textile article, yarn and fabric design instead of selecting a gauge from a list alone. Confirm the exact gauge, width and knitting-system combination with the supplier, since the published range describes a family of configurations rather than one universal setup.
For a large-format knitted textile, begin by specifying the usable fabric dimensions and how the piece will be finished or assembled. Send a physical sample or a technical drawing with stitch structure, yarn composition, yarn count and pattern repeat. Discuss whether jacquard, cable, narrowing or variable-density work in the published function list is relevant to the proposed article. A trial with the actual yarn can establish whether the fabric appearance and handling match the specification; no listed width alone guarantees suitability for every pattern.
The dimension table distinguishes 80-, 100- and 120-inch knitting widths and their separate machine lengths and weights. Review those dimensions against the available floor plan, access route and service clearance before ordering. The table lists 1100W power consumption for the shown width entries, while the specification mentions a single-phase 220V power supply; ask the supplier to verify the electrical requirement for the specific quoted machine and installation site. Do not treat a published machine dimension as the finished fabric width without checking the intended setup.
Include the required width, gauge, material, sample reference, pattern files, operating language and site power in a quotation request. Ask which knitting-system variant is proposed, what operator instruction is available and how to obtain machine-specific maintenance guidance. For day-to-day care, confirm the documented cleaning, needle inspection and lubrication routine, as well as the response procedure for the machine’s displayed alarms. The exact service scope, support arrangements and final configuration should be recorded in the quotation rather than assumed from a general product description.
