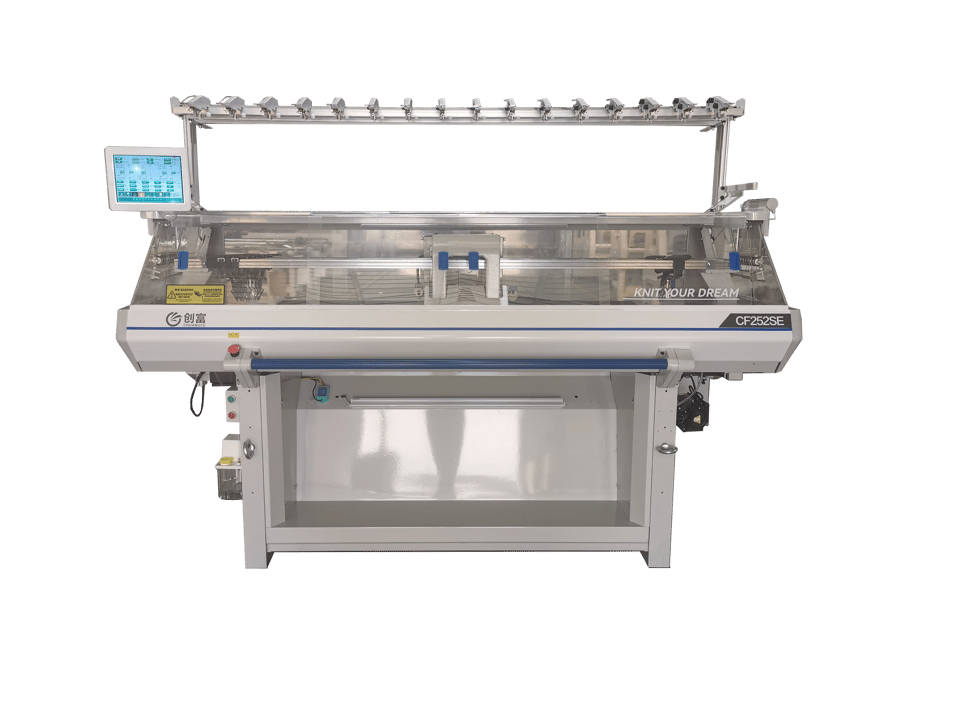

Double System
Gauge： 5/7G 7G 12G 14G
Breadth：52"
| Needle Type | 5/7G 7G 12G 14G |
| Weaving Amplitude | 52" |
| Knitting System | Double System |
| Knitting Function | Needle, pick holes, jacquard, cable, ming narrowing, dark narrowing, variable density and other regular patterns woven |
| Control System | Screen display: LED touch screen, USB input, memory up to 8G, according to the production of call |
| Monitoring menu: displays current knitting parameters, and can be adjusted at any time when the machine is operating | |
| Plate making and control system (software): easy to upgrade, for free distribution. | |
| Multi language version: according to customer needs to increase the required language. | |
| Speed:1.5m/s | |
| Protection System | When the machine has any fault in the course of action, will automatically alarm, at the same time display alarm project |
| Power Supply | Single phase 220V, CMOS technology, has the memory function at power-off moment |
| Knitting Width | Length | Width | Height | Net Weight | Power Consumption |
|---|---|---|---|---|---|
| 52" | 2500mm | 900mm | 1800mm | 830kg | 1000W |
Save space
Save space for customers and improve space utilization
Well-chosen configuration
Enhanced functional configuration, less is more
High performance
Dynamic stitch, high roller, high speed, high efficiency
High cost performance
Help to keep costs down and get more
Double System is the SE Series option shown with 5/7G, 7G, 12G and 14G gauges and a 52-inch knitting breadth. A buyer should start with the intended knitted article rather than an abstract gauge preference: supply a swatch or drawing, yarn composition and count, pattern artwork and finished dimensions. These inputs help the supplier discuss an appropriate gauge and establish whether the stated width suits the panel layout.
The specification identifies a double knitting system and lists jacquard, cable, narrowing and variable-density work among its functions. Explain which of these pattern effects matters for the sample and ask the supplier to confirm the relevant settings on the exact quoted unit. The illustrated SE Series features discuss space utilization and configuration, but they should be evaluated against the buyer’s floor plan and production method, not treated as a numeric saving. A knit trial with the selected yarn gives a clearer basis for judging the proposed configuration.
The dimension table shows a 52-inch model with a machine length, width, height, weight and power figure. Check access routes, operating clearance and electrical supply against that model before ordering. Ask how pattern files are introduced, what operating language is needed, and which instructions accompany the control system. For a quotation, include your sample, gauge and width preference, required pattern functions and installation details; request a written model specification and scope of supply.
After selection, follow the supplier’s instructions for cleaning, needle inspection and lubrication. Confirm how to interpret the machine’s displayed alarms and where to request technical support or replacement parts. The published product page offers a specification baseline; it does not by itself establish a price, delivery schedule, guarantee of fabric appearance or production capacity for a new customer design.
